Product

90 DC Brush-less Lifting Booom Barrier Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 100-120W
Current: 5A
Insulation Class: F
Gate Operation Time: 0.3S-6S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling gates leading to highways and expressways,as well as vehicle-plate reading systems for gated communities and commercial parking lots.

19 Durable box airnorne gate motor

Parameters
Voltage: DC24V
Output Efficiency: 140-200W
Current: 6A
Insulation Class: F
Gate Operation Time:3-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application scope Motor application in advertising gate (long pole ), large gate

18B double box airborne gate motor

Parameters
Voltage: DC24V
Output Efficiency: 140-200W
Current: 6A
Insulation Class: F
Gate Operation Time:3-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application scope Motor application in advertising gate (long pole ), large gate

21B DC Brushless gate motor

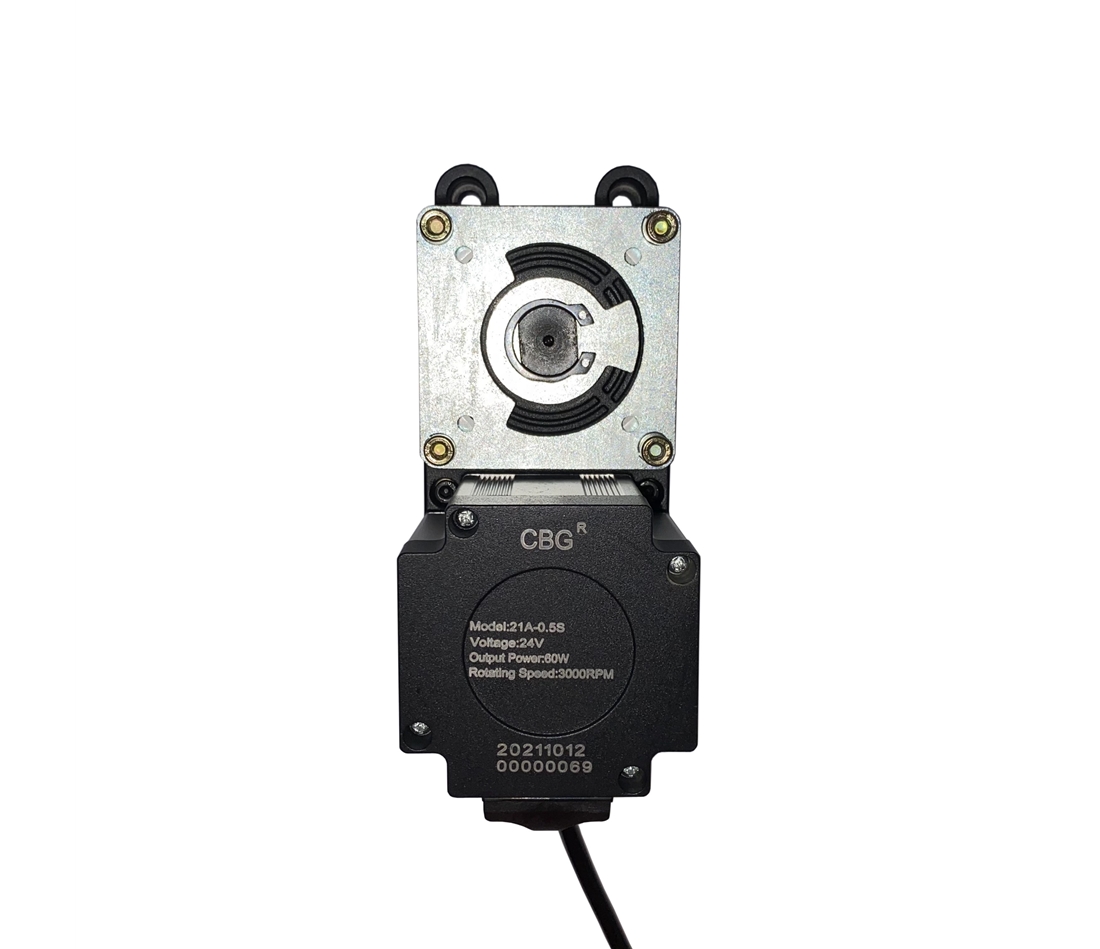

21A Mall Auto Entrance Turnstiles Security Swing Barrier Gate

Main Parameters
voltage：DC24V
output power：40-60W
current：2.8A
insulation level：F级
operating time：0.3S-1.5S
operating life：≥500万次
work enviroment
temperature range：-30℃~+60℃（-20℃以下需要加热发热片）
humidity：85%以下
海拔：1000M以下
aplication scope
mainly used on the channel swing gate of the entrance area like trensportation ,campus community propoerty,govermentagenciescompanies entry andexit,public institutions,etc.

CV Vertical Geared Motor

Model: CV
Horsepower: 400W
Reduction ratio: 30
With three-phase motor 220，380V/50，60HZ-3 PHASE
Shrink frame model
DC90V safety brake
See the direction of the wiring box according to the output axis: left direction (standard type)
Entrance direction: left, backward

17A 220V AC Commercial Gate Operating Mechanism

Parameters
Voltage: AC200V-240V
Output Efficiency: 180W/250W
Motor Series: 4P
Frequency: 50/60Hz
Current: 1.5A/2.1A
Insulation Class: F
Gate Operation Time: 3S-9S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -30℃~+70℃[-22°F~+158°F]
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling commercial pathway gates,cantilever gates and other high traffic zone gatesd other high traffic zone gates.

16B 220V AC Ordinary Gate Operating Mechanism

Parameters
Voltage: AC200V-240V
Output Efficiency: 80W/120W
Motor Series: 4P
Frequency: 50/60Hz
Current: 0.7A/0.9
Insulation Class: F
Gate Operation Time: 2S-6S
Operating lifetime: ≥5 million times Working Environment
Temperature Range: -30℃~+70℃[-22°F~+158°F]
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling swing gates,barrier lift gates(single/double-jointed),and vehicle plate recognition gates.

Commercial Gate Double-Stage Motor

Parameters
Voltage: AC200V-240V
Output Efficiency: 180W/250W
Motor Series: 4P
Frequency: 50/60Hz
Current: 1.5A/2.1
Insulation Class: F
Gate Operation Time: 3S-9S
Operating lifetime: ≥5 million times Working Environment
Temperature Range: -30℃~+70℃[-22°F~+158°F]
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling commercial pathway gates,cantilever gates and other high traffic zone gates.
